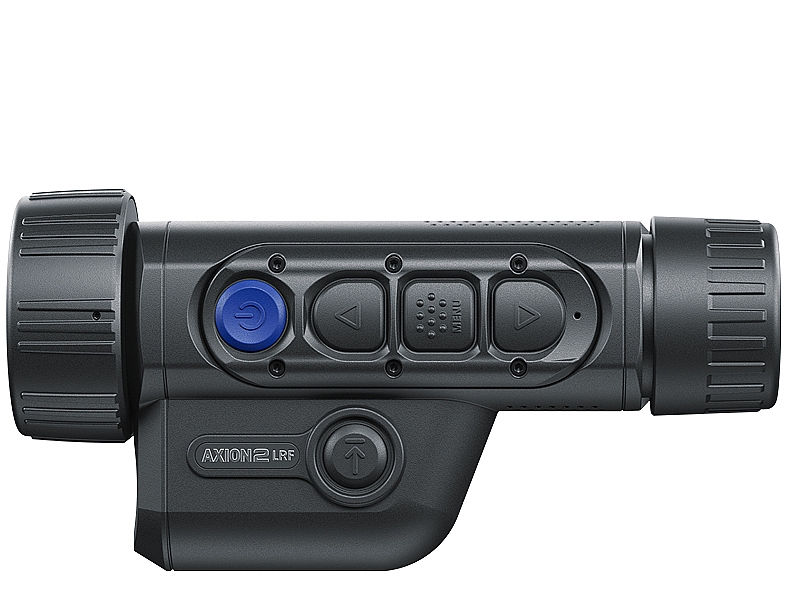

The Axion 2 LRF XG35’s F35/1.0 fast aperture lens, built-in laser rangefinder, greatly improved image quality, extended battery life (offering up to 7 hours of power on a single charge), improved algorithms, and impressive 2.4/5GHz Wi-Fi range provides an incredible thermal imaging experience.

With a wide range of features packed into a compact and lightweight design, it is easy to grip and can be operated with ease, no matter whether the user is right or left-handed, thanks to the symmetrical design and in-line button arrangement on the upper panel.

Highly Sensitive Thermal Sensor

The Axion 2 LRF XG35 features a highly sensitive 640×480, 12 µm, NETD <40mK thermal sensor, combined with a powerful Germanium F35/1.0 objective lens, to provide an impressive 1750m detection range of a standard 1.8m object in total darkness, withstanding even the most difficult, adverse weather conditions, such as fog, rain, and high levels of humidity.

Fast Aperture F35/1.0 Lens

The fast aperture Germanium F35/1.0 lens uses high infrared transmission in the LWIR range; and, due to the precision with which the optical elements within the lens have been manufactured, the Axion 2 LRF XG35 presents a level of image detail that is clear and well distinguished.

Built-In Precision Laser Rangefinder

The built-in precision laser rangefinder offers a range of up to 1000m, allowing for accurate measurements of distances in single steps or continuous scanning modes, with an accuracy of ± 1m, allowing for quick and accurate, error-free assessments within the observation area.

Enhanced Image Processing

Enhanced image processing algorithms within the device provide high quality rendering of both target objects and background. Three available levels of signal amplification, combined with a connected smoothing filter and fine brightness and contrast adjustments, provide the user with greater opportunities in terms of long-range detection of an animal and its extremities in varying weather and temperature conditions.

Variable Magnification

8x digital zoom with a base magnification of 2.5x -20x for better object recognition at considerable distances. This zoom can change either by x2 steps, or in continuous motion to offer a optimised, customised field of view.

AMOLED Display

A high contrast VGA-resolution AMOLED display, which features enhanced colour rendering, provides a clear and smooth picture whilst on-the-move.

Magnesium Alloy Housing

Despite its compact size, this thermal imaging monocular has been designed with constant and hard use in mind. The magnesium alloy housing, though extremely light, is also incredibly strong; reliably protecting the internal components from shocks, drops, moisture, heat, or cold. This housing also acts as a heat sink, removing heat generated by the internal electronics, minimising image noise, and increasing operational consistency over long periods of observation.

IPX7 Waterproof

The IPX7 waterproof rating means that this thermal imaging monocular will work in heavy rain, high humidity, and will even withstand immersion in water to a depth of 1m for up to 30 minutes.

Up to 7 Hours Battery Life

The Axion 2 LRF XG35 uses an APS5 rechargeable battery, which offers up to 7 hours of battery life on just a single charge (depending on temperature).
Removing and replacing the battery is achieved easily in mere seconds thanks to the intuitive design, and recharging is as simple as placing the battery into its charging dock or plugging directly into a PC/household power system via a USB-C cable.

Picture in Picture (PiP) Mode

Picture in Picture (PiP) mode allows the user to display a zoomed in zeroing frame at the top of the display, in which the observation area can be magnified by x2 or x4, whilst simultaneously retaining visual control over the entire field of view.

8 Colour Palettes

A choice of eight colour palettes provides the user with the ability more effectively observe their field of view, optimising the Axion 2 LRF XG35 for specific tasks and allowing it to react to changing observation conditions.

For object detection, use White Hot, Black Hot, and Red Hot; Rainbow and Ultramarine are most effective for object recognition and identification; and Red Monochrome, Sepia, and Violet are best for long periods of observation in total darkness.

Built-In Video & Still Image Recorder

Capture once-in-a-lifetime moments with built-in video and still image recording capabilities. The Axion 2 LRF XG35’s internal memory is capable of storing hours of videos and tens of thousands of still images at just the touch of a button.
Footage is easily copied onto a computer using a USB-C cable, or, with the built-in WiFi module and Stream Vision 2 connectivity, the user can easily view and share memorable moments of their hunt straight from the cloud.

Built-In Wi-Fi Module

The Axion 2 LRF XG35 will also compliment the standard smartphone 2.4 GHz Wi-Fi frequency range with an effective 5 GHz connection range, vastly improving the bandwidth and connection stability, as well as providing a faster rate of data transfer and noise immunity, all for more a more reliable operation of thermal imager and smartphone.

Stream Vision 2

Connecting the Stream Vision 2 mobile app will provide a variety of intuitive features and functionalities, including the ability to use your mobile phone or tablet as a second screen, remote control of digital functions, viewing and sharing videos and still images, remotely installing all the latest firmware updates, and much more. What’s more, users will receive a generous 16GB of free cloud storage in which to keep their video recordings and still images. The app is available for Apple and Android devices on the Apple AppStore and the Google Play Store respectively. Features and functionalities include:

Remote Control

Use your mobile phone as a wireless remote, so you can control and adjust your device’s settings. You can then see all the changes you make on your smartphone or tablet screen in real-time. You can also record footage or take still images using your mobile phone.

Browse & Share

Browse through all your photos and videos recorded on your thermal or night vision devices. You can then download and even share these files with friends.

Firmware Updates

Enjoy all the latest features and stay up to date by remotely updating your device using Stream Vision’s firmware update abilities.

In Brief, the Axion 2 LRF XG35 Features…


In brief the Axion 2 LRF XQ35 Features:
European Lynred 640×480 12 µm thermal imaging sensor
Long detection range of 1.8m tall object up to 1750m
Variable magnification from 2x - 8x
Fast aperture lens F35/1.0
Built-in precision laser rangefinder
Measuring range of 1000m with an accuracy of ±1m
Wide angle eyepiece
1024×768 HD AMOLED display
Picture in Picture (PiP) mode
8 colour palettes
Up to 7 hours battery life on a single charge
Fast start-up within 5 seconds
Built-in video and still image recorder
Built-in WiFi module
Stream Vision 2 compatible
IPX7 waterproof
